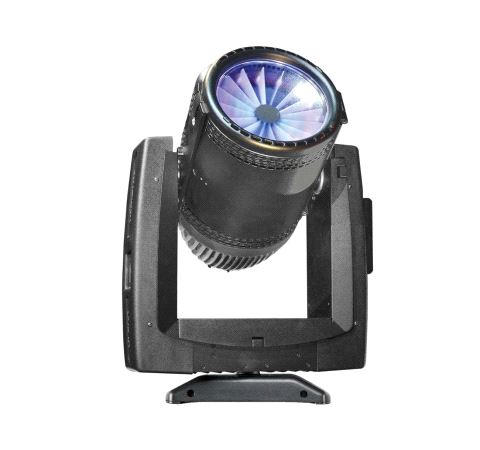

VARI*LITE® VL500™ Wash



Back by popular demand, the VARI*LITE® VL500(tm) Wash luminaire is based upon the Emmy® Awardwinning VL5(tm) Wash luminaire, but with significant design improvements. The patented and innovative DICHRO*TUNE(tm) radial color mixing system employs three sets of 16 radially mounted dichroic blades - magenta, blue, and amber - designed to produce a smooth, full spectrum of color cross-fades. This luminaire is also available with pastel versions of the standard colors. The pastel colors offer a softer Broadway-type color palette often used in live theater. The VL500 wash utilizes 16 radially mounted diffuser planes control beam spread. For additional beam control, the VL500 may be purchased with six interchangeable lens options, including clear, stipple (included in stock fixture), 8-row, 10-row, 12-row, and Buxom. The VL500 is designed with natural convection cooled lamps, and internally cooled electronics which utilize low velocity, low noise micro-fans. Two on-demand fans are mounted internally in the yoke arms and activate only in extreme conditions where ambient temperature exceeds 41°C, or if the fixture is mounted in a horizontal position.



Description:
¤ Source: 1000W Tungsten Halogen Lamp.
¤ Colour Temperature: 3200°K.
¤ Fixture Output: 4,910 lumens (230V/1000W Lamp, Stipple Lens).
¤ Power Requirements: 216 to 230VAC, 50/60Hz / Motor Power - 100 to
240VAC (0.5 to 2.0A depends on input voltage)
¤ Reflector: Precision parabolic glass reflector system with dichroic cold
mirror coating.
¤ Operational Temperature: -29° to 50°C.
¤ Cooling: Natural convection cooling supported by on-demand micro-fans for
high temperature applications.
¤ Control: Completely compatible a wide variety of DMX consoles.
¤ DMX Channels: 8 to 13 (depends on model)
¤ Mounting Position: The VL500 Wash luminaire can be mounted and
operated in any orientation.
¤ Spacing: Hangs on 48.3 cm centers.
¤ Weight: 19.5 kg


mer informasjon (brukermanual)
