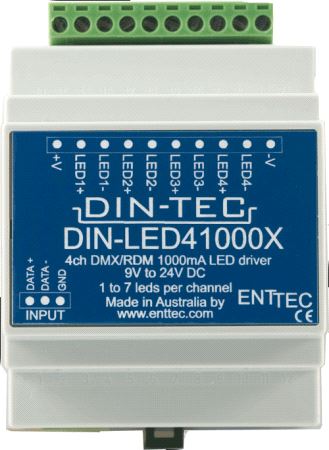

The DIN-LED4 1000X



4 channel constant current 1000mA LED driver with DMX/RDM input



Each channel can control up to seven 3 Watt leds in series. Dimming is

performed with a 500Hz PWM signal, and 8 bit resolution. There are 2

automode programs with adjustable speeds that cycle through colours

when RGB leds are connected to the outputs. DMX address or Automode

is set using any standard RDM controller.



Specifications:

¤  4 LED ports on 10 way screw connectors

¤  1 input DMX on 3 way screw connector

¤  Status LED

¤  Standard 4 module wide din-rail enclosure

¤  Operating 0 >50 ambient
